Option Board FM Conditioner Coprocessor

The Option Board FM Conditioner Coprocessor - accessory module is designed for the D*AP8 processing platforms. It extends the functionality of the D*AP8 processing platforms to include FM conditioners, providing control of the MPX power and peak deviation, with true peak and pre-emphasis limiting of a stereo FM signal.

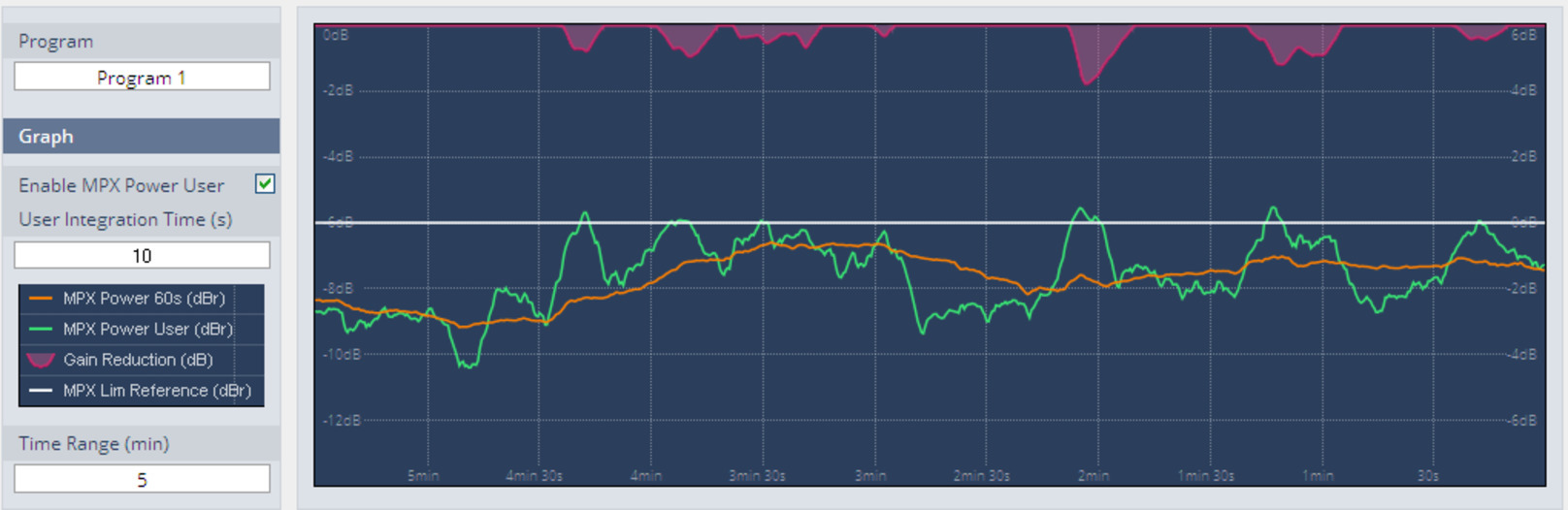

Screenshot:  visualization of the development of MPX power over time
Screenshot: visualization of the development of MPX power over time

Key Features

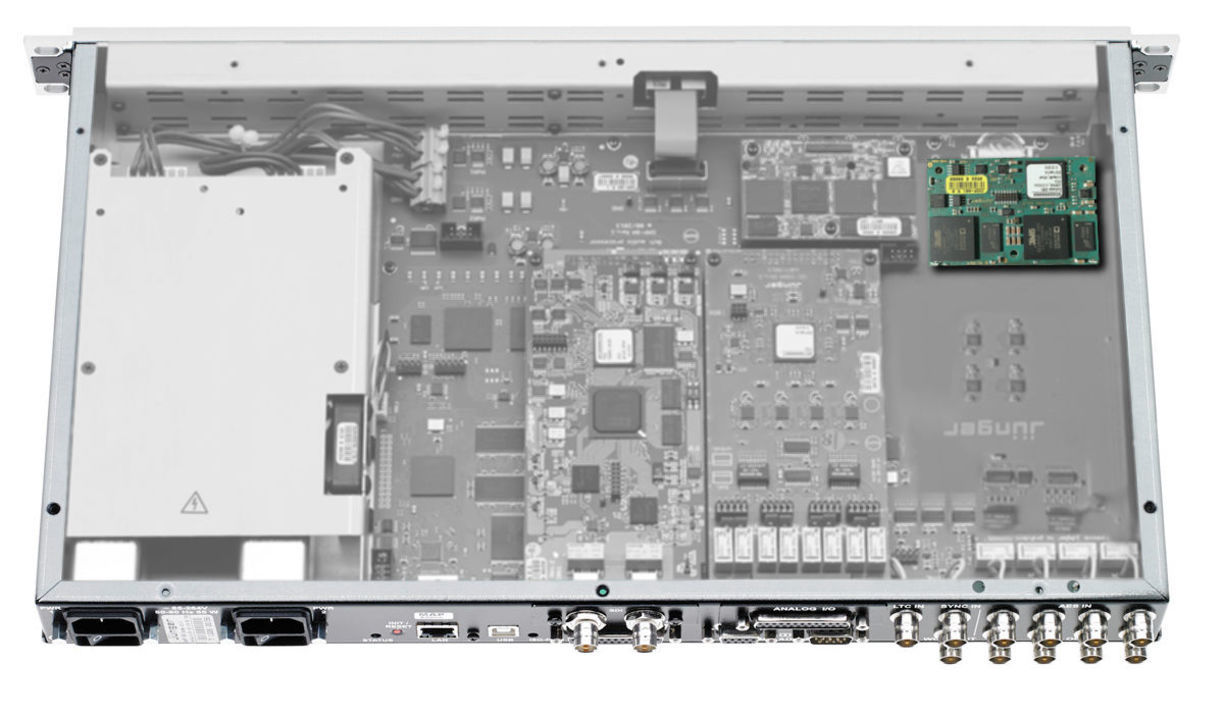

D*AP8 unit equipped with Coprocessor-Board for FM Conditioning
D*AP8 unit equipped with Coprocessor-Board for FM Conditioning
  • the functionality of the D*AP8 processing platforms to include FM conditioners
  • provides pre-control to MPX power, deviation and pre-emphasis
  • includes true peak and pre-emphasis limiting
  • includes visualization of the development of MPX power over time

Versions & Options

  • This option board is available for all products listed below this page.
